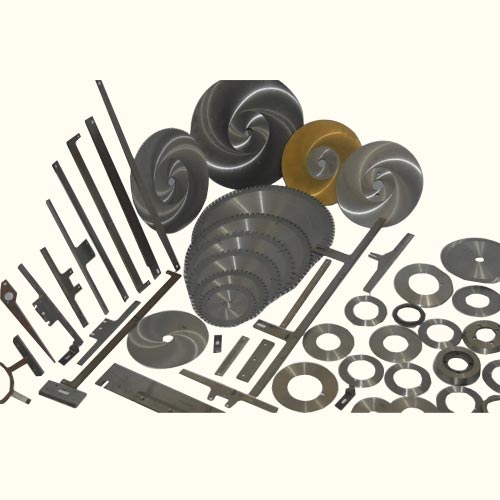

Plastic Cutting Blades

Plastic Cutting Blades are wide in demand in several industries for cutting varied types of materials. These are capable of cutting different types of plastics like PVC, nylon, and rigid vinyl, ABS, polycarbonate, polyethylene, polyurethane and many more. As compared to other standard blades, these ensure less heat, due to their negative hook angle.

Features:

  • Less heat than a standard blade
  • Leaves a crisp and smooth edge
  • Tight tolerances under heat and pressure
  • Designed with negative hook angle
  • Reduced chipping in hard and brittles plastics
  • Laser cut and press-tempered
  • Tensioned and chrome plated bodies
  • No melt grind pattern
  • Reduced in built- up of heat
  • Less friction

Applications:

  • Plastic industry
  • Packaging industry

Product Range:

Dia Teeth Arbor Kerf
4" 36 20mm .055"
7-1/4" 60 5/8"KO .079"
10" 80 5/8" .102"
12" 100 1" .110"
14" 100 1" .118"

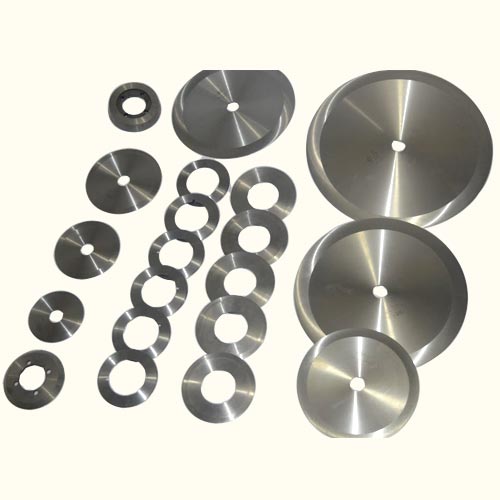

Cloth Cutting Blades

We have a wide range Cloth Cutting Blades for textile and garment industry. These blades are designed in different varieties of lengths, widths, and thickness for all machine brands and types of textile machines. Compatible with manual cutting equipment as well automated production lines, these blades are more efficient than straight grind, ensuring superior and cleaner cut.

Features:

  • Reduced production downtime
  • Best cutting results
  • Superior configuration of the cutting edge and geometry
  • Reduction in start-up and end-of-line waste
  • Highly flexible
  • Extremely sharp
  • Uniformly ground cutting edges
  • High performance coatings
  • Closest tolerances in blade geometry and cutting edge

Applications:

  • Non woven industry
  • Textile industry
  • Garment industry

Product Details:

  • Size (Length) : 14 Inch
  • Material : Steel And Tungsten Carbide
  • Usage : Cloth Cutting
  • Brand : RTE
  • Blade Type : Guillotine,Ledger,Mill & Die Blades
  • Length (mm) : 20 to

Product Range:

Length (mm) Width (mm) Thickness (mm)
85 38 0.3
81 24.8 1
100 22 1
33 7 1.36
26 7 1.39
52.7 22.2 0.15
60 64 1.2
26 15 1.8
39.7 14.4 0.88
30 18.5 1.25
20 19 0.88
50 19 0.4
50.7 18.7 0.5
55 18.7 0.65
50.4 18.7 0.65
51 18.8 0.65
25 8.1 0.5
57.6 12.9 0.15

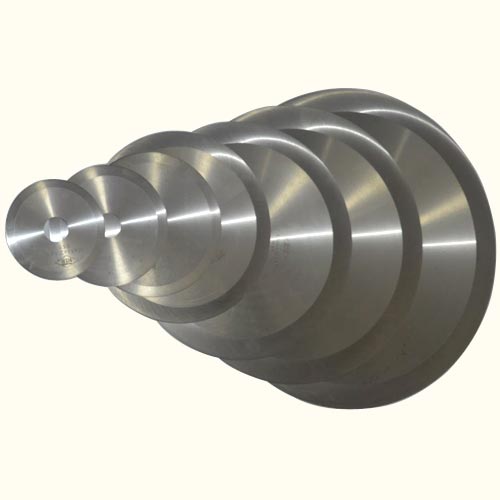

Cloth Cutting Saws

Primarily used in textile industry, Cloth Cutting Saws are designed by using high-grade steel and hardened for long service life. Compatible with all machine brands and types of textile machines, these are preferred for superior and cleaner cut in fibers with no loose threads.

Features:

  • Reduced production downtime
  • Best cutting results
  • Superior configuration of the cutting edge and geometry
  • Reduction in start-up and end-of-line waste
  • Highly flexible
  • Extremely sharp
  • Uniformly ground cutting edges
  • High performance coatings
  • Closest tolerances in blade geometry and cutting edge

Applications:

  • Non woven industry
  • Textile industry
  • Garment industry

Product Range:

Length (mm) Width (mm) Thickness (mm)
85 38 0.3
81 24.8 1
100 22 1
33 7 1.36
26 7 1.39
52.7 22.2 0.15
60 64 1.2
26 15 1.8
39.7 14.4 0.88
30 18.5 1.25
20 19 0.88
50 19 0.4
50.7 18.7 0.5
55 18.7 0.65
50.4 18.7 0.65
51 18.8 0.65
25 8.1 0.5
57.6 12.9 0.15
